README File Formats

Contents

• Overview
• Environment
  • QrBillEnvironment.json
• Profile
  • ProfileConfiguration.json
• Input files
  • Overview
  • Optional multi-language support
  • MailData.json
  • MailBody.html
  • PdfData.json
  • PdfTemplate.pdf
  • AdditionalInformation.json
  • CreditorInformation.json
  • Recipients.csv
  • RecipientsTestRun.csv
• Output files
  • PDF files
  • Protocol file
• Log files
  • qr-bills.status, qr-bills.status.tracking
  • qr-bills_YYYYMMDD.log

Overview

All the files mentioned here (except Environment) are stored into a directory named data in the installation folder, which is created at runtime. The directory data is structured as follows:

• data
  • The log file, as mentioned in section Log files. A new log file is created every day, the old log files are deleted automatically.
  • Default: The directory of the default profile, automatically created.
    • ProfileConfiguration.json: The configuration of this profile, created when you create the profile, updated when you save the configuration.
    • The status file, as mentioned in section Log files. The status file is temporarily created when a run for processing the input files is started, and usually automatically deleted when the processing has finished.
    • input: This directory contains the input files, as mentioned in section Input files. This directory is typically created when a file is uploaded.
    • output: This directory contains all the output created by processing the input files.
      • YYYYMMDD-hhmmss: Created with the timestamp of each run of processing the input files. This directory contains the created PDF files and a protocol, as mentioned in section Output files. Remark: You may want to delete these output files from time to time, even if there's a simple automatism (see maxRunsToKeep in Environment) that cleans up these files.
  • More profile directories with the same structure as Default: A profile directory is created when the user creates a new profile, and deleted when the user deletes a profile.

Environment

QrBillEnvironment.json

This JSON file contains the environment to define some global variables, is located in the configuration directory (cfg/) and holds the following items:

There is currently no UI to set maxRunsToKeep, you have to edit this JSON file. The automatism that uses this setting runs after every processing and cleans up the old runs of the current profile. Therefore, you should never have more runs per profile than this setting; except the last run was a test run, as test runs do not count; old test runs are deleted anyway and are not kept.

Example

{
    "maxRunsToKeep": 10,
    "currentProfile": "Default"
}

Profile

All files belonging to a profile are stored inside the directory data/[profile name], where [profile name] is the current value of the variable currentProfile in the Environment.

ProfileConfiguration.json

The profile configuration controls the processing and is editable via the web interface. The setting is stored into the JSON file ProfileConfiguration.json, located in the profile directory (data/[profile name]), and holds the following items:

Remarks:

• If addRefToAddInfo is set to true then the reference (see Recipients.csv) is not only written to the field 'PaymentReference' ('Referenz') of the payment slip but appended as well to the field 'AdditionalInformation' ('Zusätzliche Informationen') of the payment slip. If the optional AdditionalInformation.json is present then the reference is appended after a line break to this additional information; if there is no additional information then the reference is used as additional information.
• If createPdfis set to false then no QR bill PDFs are created, only mails are sent (without the QR bill attachment); the QR bill processor acts in fact as a simple mass mailer.
• if printPaymentSlip is set to false then the created PDF does not contain a payment slip; the QR bill processor acts in fact as a simple mass mailer with an attached personalized PDF. Possibly useful to send a letter of thanks after you have received a donation.
• If sendMail is set to false then no mails are sent, only the QR bill PDFs are created (important to control whether the PDF creation is as wanted, without sending mails to everybody ...)
• If both flags createPdf and sendMail are set to false then the QR bill processor will throw an error, as this makes no sense.
• sleepAfterSend is stored in microseconds as described above, but on the example web page, the user enters this value in tenths of seconds (10 for 1 second).
• Important: Choose the value of sleepAfterSend carefully. Ask your web hoster, how many mails per second you are allowed to send without being blocked as spammer.
• presetMail lets you pre-configure an e-mail address for the Test run execution (but it may well be overwritten there).

Example

{
    "currency": "CHF",
    "printAmount": "noAmount",
    "amount": "0.00",
    "addDebtor": "0",
    "addRefToAddInfo": "0",
    "createPdf": "1",
    "printPaymentSlip": "1",
    "sendMail": "1",
    "sleepAfterSend": 1000000,
    "presetMail": "",
    "defaultLanguage": "en",
    "multiLanguage": "0",
    "additionalLanguages": []
}

Input files

Overview

Important: All files (.html, .json and .csv) need UTF-8 encoding!

All input files are stored in the input folder below the profile directory (see Profile) by the web interface.

For the typical usage as QR bill mass mailer, all the following files are mandatory (except the mail body HTML files and the PDF template files for the optional multi-language support and the anyway optional AdditionalInformation.json).
However, the files MailBody.html and MailData.json are not needed if the flag sendMail is set to false (just QR bills are created, but no mails are sent).
On the other side, the files AmountInformation.json, CreditorInformation.json, PdfData.json and PdfTemplate.pdf are not needed if the flag createPdf is set to false.
Therefore, only the file Recipients.csv is needed in every case.

You may wonder why there are so many different input files.
The reason is that the data in the input files have --apart from a different purpose-- a different life cycle.

CreditorInformation.json is typically set just once for an organization (probably only changed when the address or the IBAN of the creditor changes).
MailData.json, which contains the sender address and the subject of the e-mail, will also seldomly change.
The optional AdditionalInformation.json may change when the purpose of the bill changes, for example between "Donation" and "Membership fee", or it is not present at all for some usage scenarios.
MailBody.html, PdfData.json and PdfTemplate.pdf will probably change for every specific variant of bills.
Recipients.csv will change for every run of the QR bill processor.

Typically, you will maintain different sets of these files for different use cases. Use different profiles to achieve that!

Optional multi-language support

The supported languages "de", "fr", "it" and "en" are hard-coded, as the underlying Swiss QR bill library (and the Swiss QR bill standard as well) do only support these four languages.

The JSON files support multiple languages on some fields; such a field contains the following sub keys:

• "language": contains one of the following values:
  • "default": mandatory, default text in the configured defaultLanguage, more below.
  • optionally, one of the additional languages "de", "fr", "it" and "en" (but not the defaultLanguage, for example "en".
• "text": the text assigned to this language.

The mail body (a HTML file) and PDF template files are treated specially, see MailBody.html and PdfTemplate.pdf.

The algorithm for the multi-language support works as follows: Any field is looked up with the language code found in the current recipient.

1. If an entry exists for this specific language variant then the text assigned to this language is returned.
2. If no entry exists for this specific language variant then the text assigned to the language "default" is returned.

Remark: During the 'Dry run' execution, a warning is issued if a recipient record contains a language that is not included in any field of an input file. In this case, the normal processing would take the default language without any further notice.

MailData.json

This file is ignored if the configuration flag sendMail is false (just QR bills are created, but no mails are sent).

It contains the information for sending the e-mail.

Fields

The surrounding key MailData contains the following fields:

Remarks:

• The fields subject and attachmentName support Multi-language, but both should not contain umlauts, as this is not properly supported by e-mail clients.
• attachmentName is just the name without file extension .pdf (current date and file extension are appended by the code).
• attachmentName is optional if the configuration flag createPdf is false.

Example

without optional Multi-language support:

{
    "MailData":
    {
        "fromAddress": "hans@example.com",
        "fromName": "Hans Muster",
        "subject" : [
            {
                "language": "default",
                "text": "Friends of QR-Rechnung"
            }
        ],
        "attachmentName": [
            {
                "language": "default",
                "text": "QR-Rechnung"
            }
        ]
    }
}

with optional Multi-language support for "en" (defaultLanguage is "de"):

{
    "MailData":
    {
        "fromAddress": "hans@example.com",
        "fromName": "Hans Muster",
        "subject" : [
            {
                "language": "default",
                "text": "Friends of QR-Rechnung"
            },
            {
                "language": "en",
                "text": "Friends of QR bill"
            }
        ],
        "attachmentName": [
            {
                "language": "default",
                "text": "QR-Rechnung"
            },
            {
                "language": "en",
                "text": "QR-bill"
            }
        ]
    }
}

MailBody.html

This file is ignored if the configuration flag sendMail is false (just QR bills are created, but no mails are sent).

It contains the HTML message body for the e-mail sent with the created QR bill as attachment and is taken as is, except you have defined some placeholders.

The following placeholders are recognized:

Multi-language support

In addition to the file MailBody.html, the code will look if there are files named MailBody_[language].html, for example MailBody_en.html for English.

Example

See separate documentation in the directory examples. The usage of placeholders are shown in section A.2 - E-mail mass mailing with multi-language support

PdfData.json

This file is ignored if the configuration flag createPdf is false (do not create QR bills, just send mails).

It contains positions, text attributes and texts for variable elements to be printed into the created PDF. You may add as many entries as you wish, but pay attention to the special entries.

If you don't like how this is done (and you are familiar with programming in PHP), you can easily implement your own method by changing the method process() in the PHP source file QrbPdfCustomizer.php.

Fields

The surrounding key PdfData contains a list of items with the following format:

Remarks:

• The field name is mandatory.
• The field position is mandatory except for the special entry default.
• The field textAttribute is mandatory only for the special entry default.
• The field text is mandatory except for the special fields default, address and amount (see below). This field supports Multi-language.

 Special entries

default

This entry holds the default text attribute that is taken if some other field does not define a text attribute. This entry has neither a position nor a text.

address

This entry does not have a text, but holds the start position and (optionally) the text attribute for the address, which is taken from the recipient. The lineHeight of its textAttribute is used as spacing between the address lines as well.
See Creation of the address lines in the PDF for details about the formatting of the adress lines.

amount

This entry does not have a text, but holds the position and (optionally) the text attribute for the amount, which is taken either from the configuration or from the recipient.

greeting

This entry does not have a text, but holds the position and (optionally) the text attribute for the optional greeting, which is taken from the recipient.

TextAttribute

If a text attribute for one of the positions is missing then the default text attribute is taken.

Remarks:

• Choose a fontFamily that is installed on your server (of course it should match the family used in the PDF). Otherwise the result is unpredictable.

Position

Remark:

• For backwards compatibility, the page position can be omitted; in this case, it defaults to 1.

Example

without optional text attributes and Multi-language support:

{
    "PdfData": [
        {
            "name": "default",
            "textAttribute":
            {
                "textColor":  "0",
                "lineHeight": "5",
                "fontFamily": "Helvetica",
                "fontStyle":  "",
                "fontSize":   "11"
            }
        },
        {
            "name": "address",
            "position":
            {
                "page": "1",
                "posX": "110",
                "posY": "45"
            }
        },
        {
            "name": "amount",
            "position":
            {
                "page": "1",
                "posX": "90",
                "posY": "113"
            }
        },
        {
            "name": "greeting",
            "position":
            {
                "page": "1",
                "posX": "5",
                "posY": "98"
            }
        },
        {
            "name": "date",
            "position":
            {
                "page": "1",
                "posX": "110",
                "posY": "82"
            },
            "text": [
                {
                    "language": "default",
                    "text":     "Zürich, 1. Dezember 2099"
                }
            ]
        }
    ]
}

with optional Multi-language support for "en" (defaultLanguage is "de"):

{
    "PdfData": [
        {
            "name": "default",
            "textAttribute":
            {
                "textColor":  "0",
                "lineHeight": "5",
                "fontFamily": "Helvetica",
                "fontStyle":  "",
                "fontSize":   "11"
            }
        },
        {
            "name": "address",
            "position":
            {
                "page": "1",
                "posX": "110",
                "posY": "45"
            },
            "textAttribute":
            {
                "textColor":  "0",
                "lineHeight": "5",
                "fontFamily": "Helvetica",
                "fontStyle":  "",
                "fontSize":   "11"
            }
        },
        {
            "name": "amount",
            "position":
            {
                "page": "1",
                "posX": "90",
                "posY": "113"
            },
            "textAttribute":
            {
                "textColor":  "0",
                "lineHeight": "5",
                "fontFamily": "Helvetica",
                "fontStyle":  "B",
                "fontSize":   "11"
            }
        },
        {
            "name": "greeting",
            "position":
            {
                "page": "1",
                "posX": "5",
                "posY": "98"
            }
        },
        {
            "name": "date",
            "position":
            {
                "page": "1",
                "posX": "110",
                "posY": "82"
            },
            "textAttribute":
            {
                "textColor":  "0",
                "lineHeight": "5",
                "fontFamily": "Helvetica",
                "fontStyle":  "",
                "fontSize":   "11"
            },
            "text": [
                {
                    "language": "default",
                    "text":     "Zürich, 1. Dezember 2099"
                },
                {
                    "language": "en",
                    "text":     "Zurich, December 1, 2099"
                }
            ]
        }
    ]
}

Layout

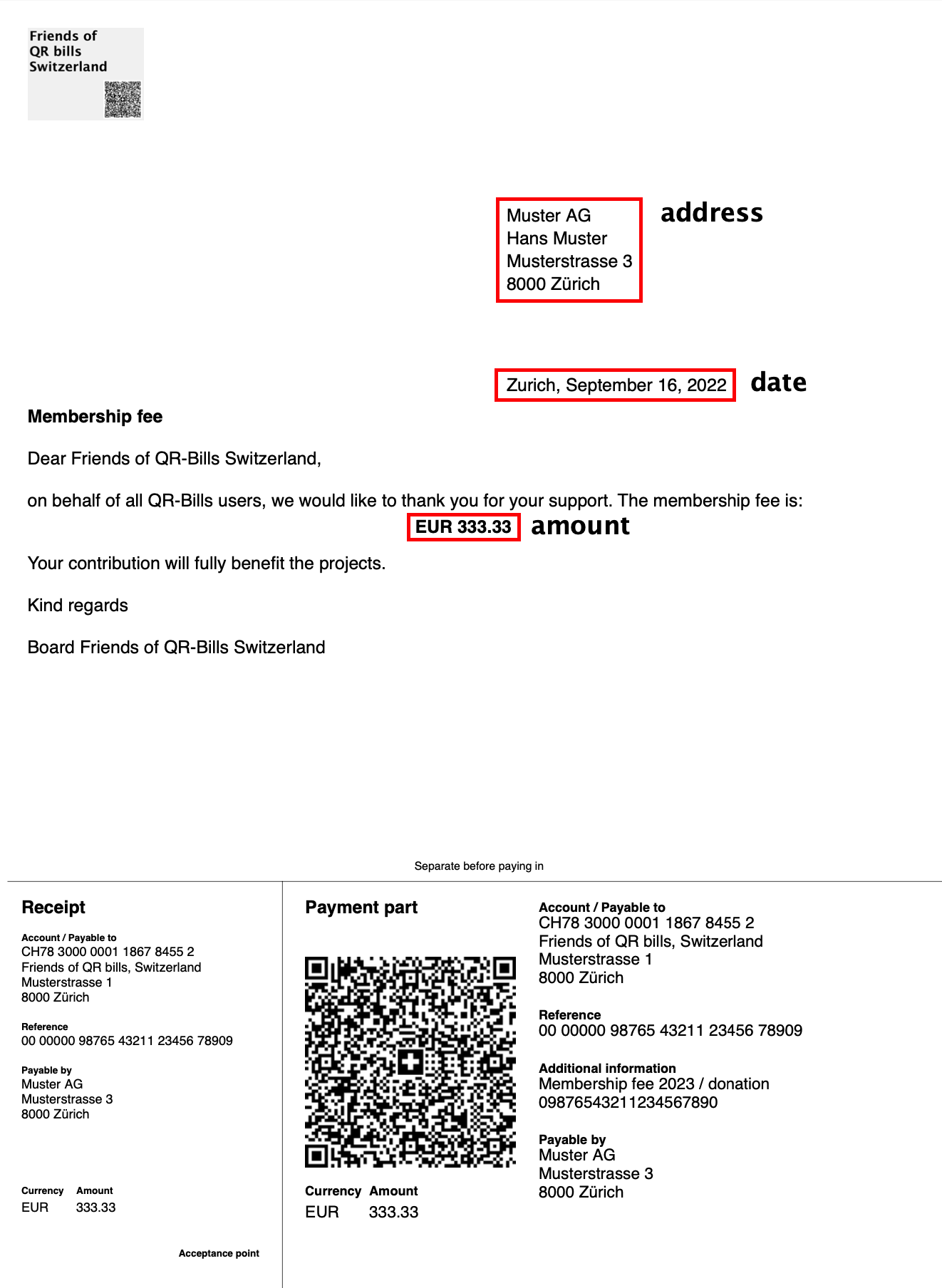

The example gives you the following PDF:

PdfTemplate.pdf

This file is ignored if the configuration flag createPdf is false (do not create PDFs, just send mails).

It contains the template for the PDF to be created. The PDF template is taken as is, it is not processed by the code in any way. The template (that may contain several pages) is imported, and afterwards (optionally) the fields defined in PdfData.json are printed according to their positions. If the configuration flag printPaymentSlip is true then the payment slip is printed at the bottom of the last page (so leave this area empty on the last page of the template).

Multi-language support

In addition to the file PdfTemplate.pdf for the default language, the code will look if there are files named PdfTemplate_[language].pdf, for example PdfTemplate_en.pdf for English.

Example

See example in PdfData.json and the separate documentation in the directory examples.

AdditionalInformation.json

This file is ignored if either of the configuration flags createPdf (do not create QR bills, just send mails) or printPaymentSlip (do not print print payment slip) is false.

This file is optional. If it's missing then the additional information on the payment slip is empty, except the configuration flag addRefToAddInfo is set. In the latter case the additional information contains just the reference (see also below).

If this file is present then it contains additional information to be printed on the QR bill (field "Zusätzliche Informationen"). It can contain up to 140 characters with several lines (separated by the control character \n) and optionally supports Multi-language.

If configured (see addRefToAddInfo in the configuration) then the code will add an additional line with the reference. In this case, pay attention to the maximum number of characters!

Fields

The surrounding key AdditionalInformation contains the following field:

Examples

without optional Multi-language support:

{
    "AdditionalInformation":
    {
        "additionalInformation": [
            {
                "language": "default",
                "text": "Mitgliederbeitrag 2099 / Spende"
            }
        ]
    }
}

with optional Multi-language support for "en" (defaultLanguage is "de"):

{
    "AdditionalInformation":
    {
        "additionalInformation": [
            {
                "language": "default",
                "text": "Mitgliederbeitrag 2099 / Spende"
            },
            {
                "language": "en",
                "text": "Membership fee 2099 / donation"
            }
        ]
    }
}

CreditorInformation.json

This file is ignored if either of the configuration flags createPdf (do not create QR bills, just send mails) or printPaymentSlip (do not print print payment slip) are false.

It contains the creditor information to be printed on the QR bill (field "Konto / Zahlbar an").

Fields

The surrounding key CreditorInformation contains the following fields:

ATTENTION: The QR-IBAN is not an ordinary IBAN! A QR-IBAN contains --starting with the 5th position-- a value in the range 30000..31999 (this is checked if checkQrIban is true). Only with a QR-IBAN, it is allowed to use the reference part on the payment slip.
If a bank IBAN is used, the payment reference ("Referenz") of the payment slip is not set; but it may still be added to the additional information ("Zusätzliche Informationen") of the payment slip by setting the configuration flag addRefToAddInfo to true.

Examples

{
    "CreditorInformation":
    {
        "name": "Friends of Kisimiri",
        "addressLine1": "Schöner Wohnen 123",
        "addressLine2": "8000 Zürich",
        "country": "CH",
        "checkQrIban": "true",
        "iban": "CH4431999123000889012",
        "besrId": "12345678"
    }
}

OR (no besrId, as field is missing)

{
    "CreditorInformation":
    {
        "name": "Friends of Kisimiri",
        "addressLine1": "Schöner Wohnen 123",
        "addressLine2": "8000 Zürich",
        "country": "CH",
        "checkQrIban": "true",
        "iban": "CH4431999123000889012"
    }
}

OR (iban is no QR-IBAN, checkQrIban is "false")

{
    "CreditorInformation":
    {
        "name": "Friends of Kisimiri",
        "addressLine1": "Schöner Wohnen 123",
        "addressLine2": "8000 Zürich",
        "country": "CH",
        "checkQrIban": "false",
        "iban": "CH5204835012345671000"
    }
}

OR (iban is no QR-IBAN, check missing)

{
    "CreditorInformation":
    {
        "name": "Friends of Kisimiri",
        "addressLine1": "Schöner Wohnen 123",
        "addressLine2": "8000 Zürich",
        "country": "CH",
        "iban": "CH5204835012345671000"
    }
}

Recipients.csv

This file is mandatory and contains the data of the recipients.

The extension CSV does mean Comma Separated Values. That means that the field values in such a file are separated by the delimiter comma (,). But there are some applications that are able to export their proprietary data format into a CSV file, but they do not use a comma as separator but another character; Microsoft's Excel for example likes to use a semi-colon (;). Therefore this software tries to guess the delimiter by parsing the first two lines of the given CSV file and determining which separator of a given list occurs most often. The characters that are beeing looked for are comma (,), tabulator (\t), semi-colon (;), pipe (|) and colon (:).

The fields in a CSV file may be surrounded by quotation marks ("), but this is optional as long as the fields do not contain a delimiter. Only if a field contains a delimiter, it must be surrounded by quotation marks. In the following examples, the fields are separated by comma and not surrounded by quotation marks.

Attention: If the CSV file ends with an additional empty line, the import will fail!

Fields

The first line of this CSV file is the header line with keys (field names) that define the contents of the corresponding columns (fields) in the following lines. Depending on the use case, not all of the fields must be present. As the header line defines, which field is on which position, the order of the fields is not important.

Example of a complete header line

Company,Salutation,FirstName,LastName,Street,BuildingNo,PostalCode,City,Country,Language,MailAddress,Reference,Amount

The fields in the following lines contain the following contents:

Remark regarding language: If the language of a recipient is not one of the supported languages de, fr, it or en or the configured multi-language support does not support the language of a recipient, the configured defaultLanguage (see configuration) is taken for this recipient.

Usage of the fields

Remark: In general, a field may be left empty. But if some of the mandatory fields FirstName..Country are empty, it may lead to strange looking or even invalid QR bills (QR codes). The software does not check this!

Creation of the address lines in the PDF

• Address line 1: If the field Company is not empty then field Company is used; otherwise the field Salutation is used.
• Address line 2: Field FirstName, followed by a space character (' '), followed by the field LastName.
• Address line 3: Field Street, followed by a space character (' '), followed by the field BuildingNo.
• Address line 4: Field PostalCode, followed by a space character (' '), followed by the field City.

Creation of the debtor lines in the payment slip

• The name of the debtor is built as follows: If the field Company is not empty then the field Company is used; otherwise the field FirstName and the field LastName are combined to one string (separated by a space character ' ', example Hans Muster).
• The fields Street..Country are passed as-is to the QR bill payment slip engine.

Examples

First two entries do not have a company, second entry does not have a salutation

Company,Salutation,FirstName,LastName,Street,BuildingNo,PostalCode,City,Country,Language,MailAddress,Reference,Amount,Greeting
,Frau,Hanna,Muster,Musterstrasse,1,8000,Zürich,CH,de,hmuster@example.com,1234567890,222.90,"Liebe Frau Muster"
,,Han,Muster,Musterstrasse,2,8000,Zürich,CH,it,han.muster@example.com,0987654321,125.25,"Caro Han"
Muster AG,Herr,Hans,Muster,Musterstrasse,3,8000,Zürich,CH,en,musterag@example.com,09876543211234567890,100,"Dear Mr. Muster"
Muster GmbH,,c/o Hans,Muster (-Müsterli),Musterstrasse,4,8000,Zürich,CH,fr,mustergmbh@example.com,09876543211234567890,0.05,""

Payment reference and amount are missing as unused, no greeting

Company,Salutation,FirstName,LastName,Street,BuildingNo,PostalCode,City,Country,Language,MailAddress
,Frau,Hanna,Muster,Musterstrasse,1,8000,Zürich,CH,de,hmuster@example.com
,,Han,Muster,Musterstrasse,2,8000,Zürich,CH,it,han.muster@example.com
Muster AG,Herr,Hans,Muster,Musterstrasse,3,8000,Zürich,CH,en,musterag@example.com
Muster GmbH,,c/o Hans,Muster (-Müsterli),Musterstrasse,4,8000,Zürich,CH,fr,mustergmbh@example.com

Different order, no e-mail, reference, amount and greeting

Pay attention to the lines 3 and 5: The commas at the end are mandatory!

Language,FirstName,LastName,Street,BuildingNo,PostalCode,City,Country,Company,Salutation
de,Hanna,Muster,Musterstrasse,1,8000,Zürich,CH,,Frau
it,Han,Muster,Musterstrasse,2,8000,Zürich,CH,,
en,Hans,Muster,Musterstrasse,3,8000,Zürich,CH,Muster AG,Herr
fr,c/o Hans,Muster (-Müsterli),Musterstrasse,4,8000,Zürich,CH,Muster GmbH,

Only the fields are present that are needed for a simple e-mail mass mailing

Language,MailAddress
de,hmuster@example.com
it,han.muster@example.com
en,musterag@example.com
fr,mustergmbh@example.com

RecipientsTestRun.csv

This file has the same format as Recipients.csv, but has only one entry with a test recipient. The e-mail address of this entry is dynamically (but not persistently) set by the 'Test run' execution.

Remark: This file cannot be uploaded using the web page. It is provided as part of the delivery in the directory cfg/. You may change the contents of this file, but you must not delete it, as otherwise the 'Test run' execution will no longer work.

Example

Company,Salutation,FirstName,LastName,Street,BuildingNo,PostalCode,City,Country,Language,MailAddress,Greeting
,Familie,Hans+Hanna,Muster,Musterstrasse,1,9999,Musterstadt,CH,de,muster@example.com,1234567890,55.55"Liebe Familie Muster"

Remark: The e-mail address muster@example.com is not used at all, see explanation above.

Output files

All output files are stored in the output folder below the profile directory (see Profile) except the status file and the log file (see below).

PDF files

The created PDF files are stored in a folder inside of the output folder that carries the current date and time in the format YYYYMMDD-hhmmss (YYYY = year, MM = month, DD = day, hh = hour, mm = minute, ss = second), for example 20991231-235959.

The name of each PDF file has the format
qr-bill-[index]-[lastName]-[firstName]-[mailAddress].pdf
If the recipient has no mail address then the part "-[mailAddress]" is not appended.

Remarks:

• A second run at the same date and time (in the same second) will overwrite the existing files.
• Probably, it's a good idea to save this directory for further reference after you have processed a QR bill execution. (Tip: Use the download link for the generated ZIP file in the UI.)
• If you have run the processing many times, you will get a lot of directories with the created PDF files. There is an automatism, that cleans up the oldest output runs; the setting maxRunsToKeep in the Environment defines how many runs are kept.

Example file names

With e-mail address:

qr-bill-1-Muster-Hans-muster@example.com.pdf

Without e-mail address:

qr-bill-1-Muster-Hans.pdf

Protocol file

The protocol is named qr-bills-protocol.csv is stored in the same folder inside of the output folder that contains the PDF files.

This protocol lists every processed item and contains the following fields:

Remark:

• A second run at the same date and time (in the same second) will overwrite the existing files.

Log files

qr-bills.status, qr-bills.status.tracking

The status file and the status tracking file are stored directly in the directory data. These files are used to display the status of the processing asynchronously on the web page.

Remark:

• Each run creates new files!
• But anyway, you should not care about these files, they should be deleted in normal circumstances (which means, they will show up only during processing QR bills).

qr-bills_YYYYMMDD.log

The log file is stored directly in the directory data and shows every action taken by the QR bill processor, especially important if some error occurs. Refer to the corresponding source code to understand the log entries.

The name of the log file consists of the prefix qr-bills_, followed by the current date (format YYYY = year, MM = month, DD = day), followed by the extension .log.

Remark:

• Each run tests if there are old log files (files carrying another date than the current date) and will delete all of them.
