Introduction

This simple tool called QR bill processor is designed to create QR bills for bulk mailing and optionally send them via email right away. It supports payment slips with QR IBAN (formerly the orange payment slips) and payment slips with bank IBAN (formerly the red payment slips).
A QR-IBAN is a special IBAN that must be requested from the bank or PostFinance, respectively, and enables a reference number to be entered in a separate field, which is automatically read from the payment data depending on the accounting software used (if any).
For the bank IBAN, the reference number can optionally be entered in the "Additional information" field; however, this text field is unstructured and therefore typically cannot be processed automatically.

Additionally, this tool may also be used as simple bulk mailer without generating QR bills (see examples).

At the moment, this tool is not multi-user capable! When several people use the tool at the same time, funny things may happen. There are some guards that should prevent that several clients change the data of a profile at the same time, but: You have been warned!

Example output

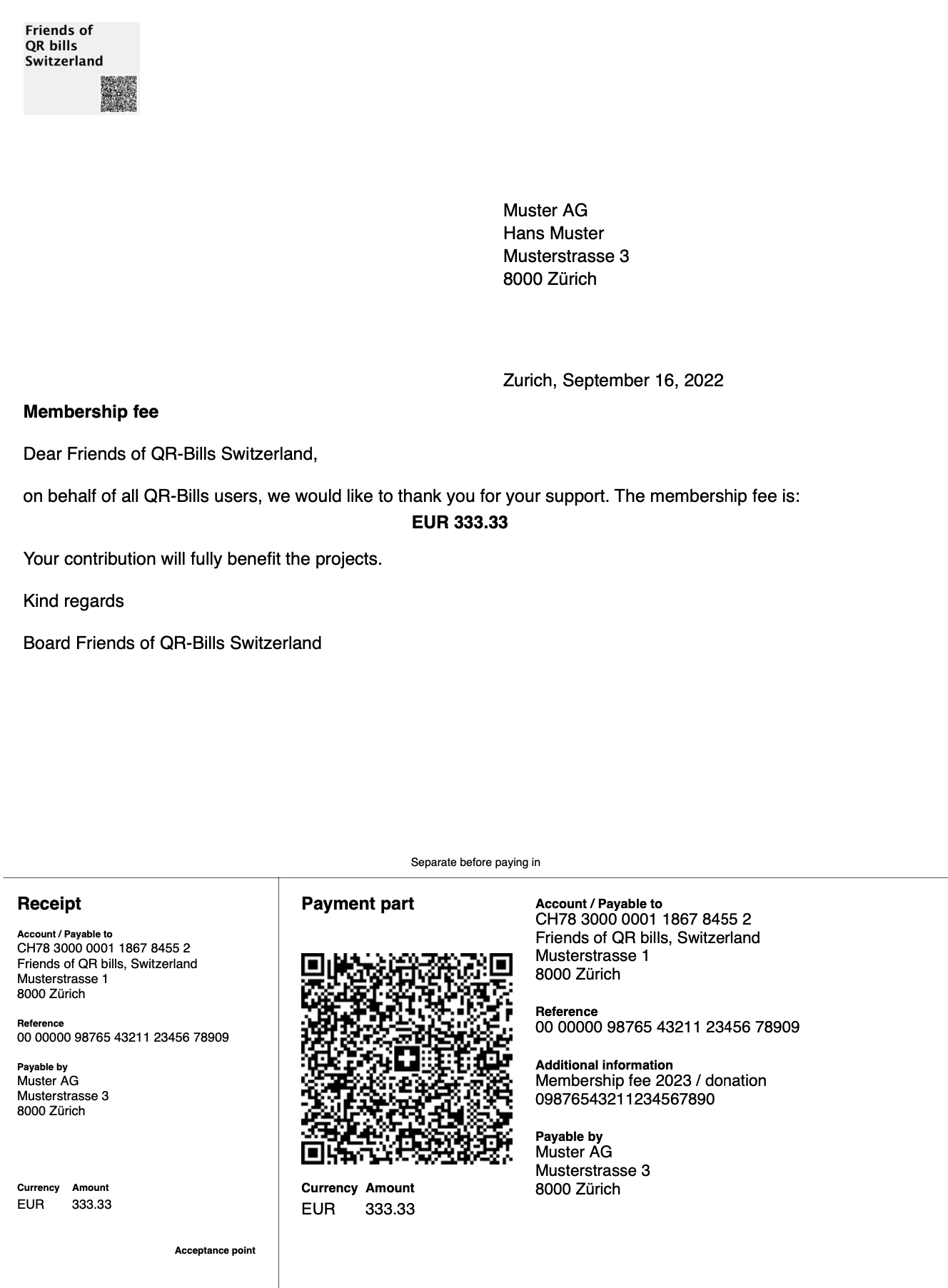

Example for a QR bill containing a payment slip with a QR-IBAN:

Documentation

The documentation in the docs/ directory describes the technical aspects of the QR bill processor, especially the file formats. The docs/ directory contains as well a HOWTO document, which describes how the example web pages may be customized, and a document README Error Handling that may help to solve some problems.
The directory examples/ contains examples of different input files for the QR bills processor and the accompanying documentation describing how the various input files interact to achieve a particular type of application.
The QR codes created by the examples have been validated by the Swiss QR-bill Validation.Portal. (You need a registration to access this portal.)

Remark: It helps to read through these documentations in its entirety at least once. :-)

 License

This tool itself has no no usage restrictions and is based mainly on the components swiss-qr-bill (permissive license: there is no usage restriction), FPDI (permissive MIT license: there is no usage restriction), PHPmailer (GNU Lesser General Public License v2.1) and Translations (permissive license: there is no usage restriction). Before you use the software, pay attention to the licenses of the software and the included components.

Delivery

The delivered ZIP file (qr-bills-x.y.zip, where x.y is the version) contains:

Installation

Unzip the ZIP file and copy the files and folders to your web server, either in a sub directory or into root. (But pay attention to remark IMPORTANT 3.)

IMPORTANT 1: The QR bill processor (or more precisely the libraries it depends on) need at runtime at least PHP version 8.2 to be installed on the web server.

IMPORTANT 2: You should protect the installation folder with a password, otherwise possibly everybody can use the QR bill processor and send e-mails, spamming the whole world using your sender address!

IMPORTANT 3: The delivered ZIP file contains PHPUnit! Deinstall PHPUnit before you install the vendor directory on the web server (see also remark in READ ME Unit tests) or use the distribution ZIP file (qr-bills-x.y-distribution.zip), where PHPUnit (and all tests) have already been removed.

Usage of the web page

Point your browser to the address where the example web page named index.php is located (where you have installed the software).

https://{your domain}[/optional sub directory]/index.php

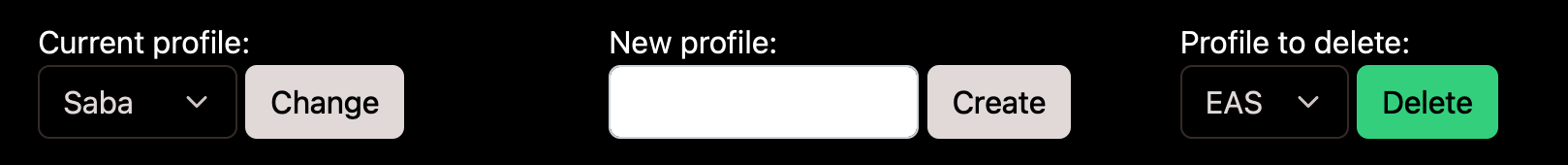

The web page displays on the top the profile selection:

• The combo box named Current profile allows to change between different profiles (different settings of configuration and input files, see below). Initially, there is only one profile named Default. After you have chosen another profile in the combo box, you have to click on the button Change to activate the selected profile.
• The text box after the text New profile allows to enter any name for a new profile. As the profiles may be implemented as sub directories on the hosting machine, you should stick here to names that are allowed as a directory name on the hosting machine. Therefore, it's probably wise to not use spaces, umlauts or other special characters in the name! After you have typed in a new name, you have to click on the button Create to create a new profile with a configuration setup with default values and no input files loaded.
• The last combo box shows all created profiles (except the Default profile). Selecting one and pressing Delete will immediately delete the selected profile without any warning, so pay attention!

All the changes you make in the following sections 1. Configure settings and 2. Upload input files are stored into the currently selected profile.

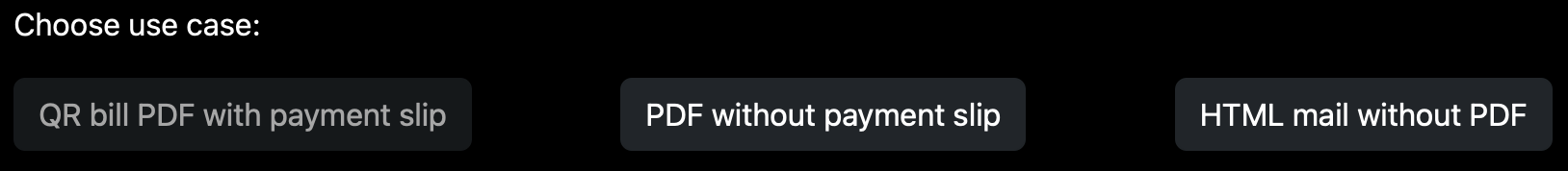

Next, the web page displays the three available use cases:

• QR bill PDF with payment slip The main goal of this tool: Create PDFs containing a QR bill payment slip and optionally send them via e-mail.
  This use case sets implicitely the configuration options createPdf and printPaymentSlip.
• PDF without payment slip
  For example, send a mail with a PDF attachment thanking a donation.
  This use case sets implicitely the configuration option createPdf.
• HTML mail without PDF
  Simple HTML mass mailer.
  This use case sets implicitely the configuration option sendMail.

For each of these use cases, the web page shows three sections:

1. Configure settings: Configure detail settings.
2. Upload input files: Upload the needed input files.
3. Execute: Test and finally execute the process.

The sections 2. and 3. will change according to the chosen use case and the chosen settings.

Therefore, first select one of the use cases then configure the details. Now, upload the input files; they are checked against the chosen use case and the chosen configuration settings. Finally, you should first make some test runs to see if the result meets your expectations and second you may execute the QR bill processor. Have fun!

QR bill PDF with payment slip

As this use case contains the other two use cases, this section will explain all the options. The sections describing the other use cases just mentions some specialities for that use case.

1. Configuration

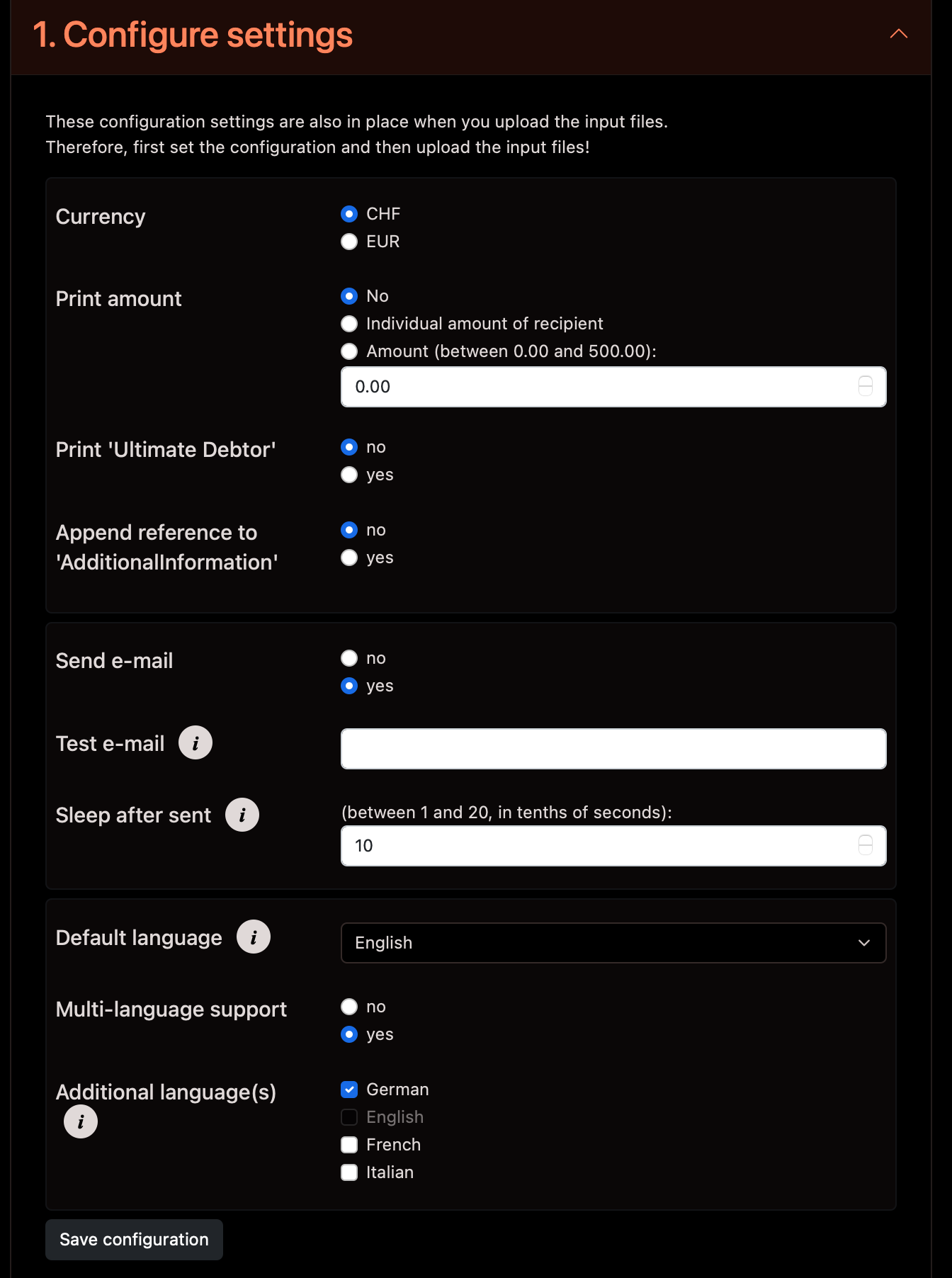

This section may look like this:

This section contains the following configuration items:

These configuration items are saved by pressing the button Save configuration. If you have changed Multi-language support from no to yes, you must first save the configuration before you can see the option Additional language(s).

Remarks:

• Refer to the documentation of the global configuration for more details regarding the options.
• If the selection of Print amount is Individual amount of recipient then the recipient entries are tested whether they have a valid amount.

2. Upload input files

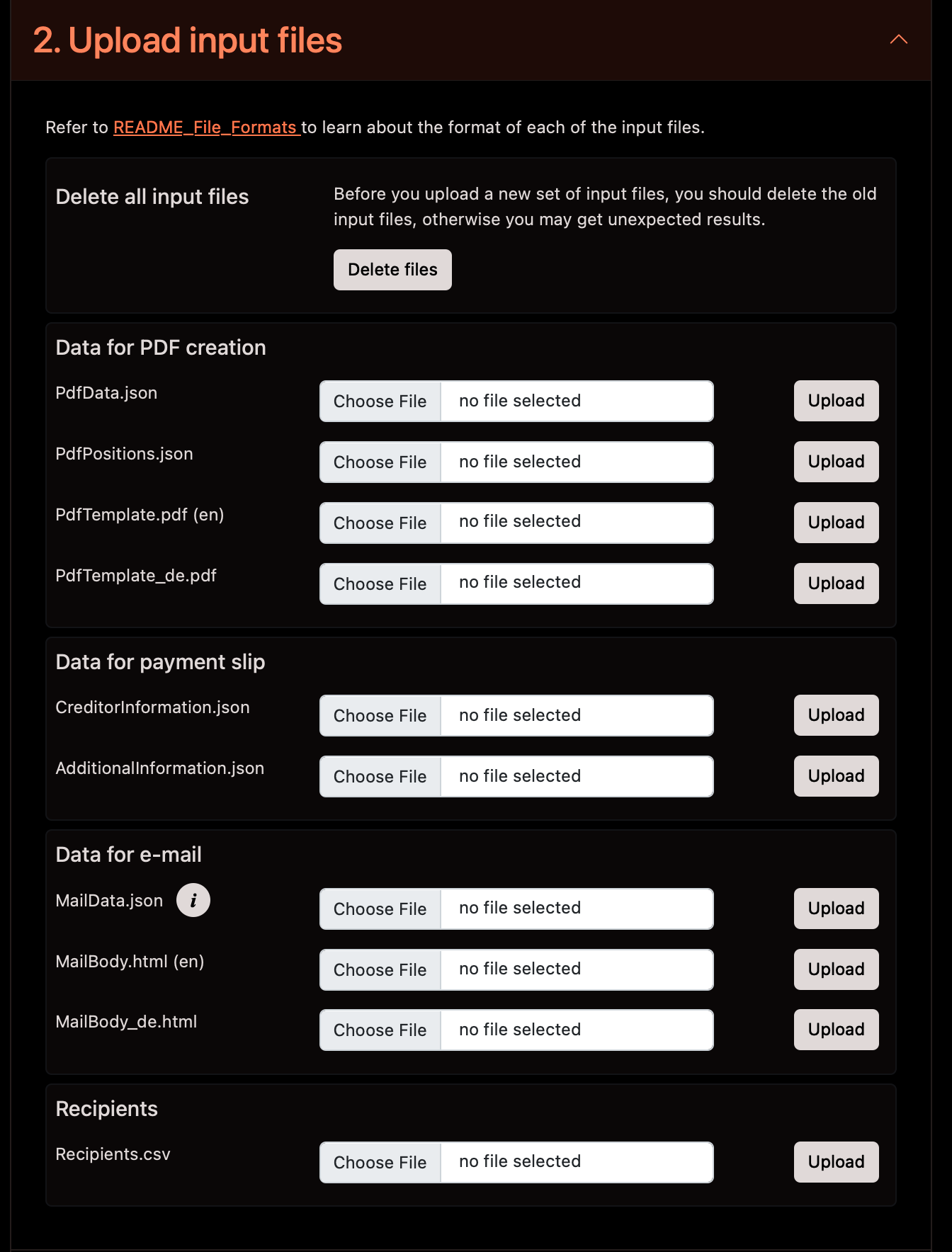

This section may look like this:

This section allows:

1. Delete all the input files by pressing the button Delete files; recommended before uploading a new set of input files to get rid of the old input files.
   You will see the result in a status field below this section.

2. Upload every input file needed by the QR bill processor: Just press the button Choose File (or however this is called in your preferred browser) to select a file and then press the button Upload beside the file name to upload the file.
   You will see the result in the status field at the beginning of this section (the web page scrolls to this status field automatically).

The use case QR bill PDF with payment slip will ask you for the following input files:

• Data for PDF creation
  • PdfData.json
  • PdfPositions.json
  • PdfTemplate.pdf (XX), where XX is the shortcut of the chosen default language ((XX) is not shown when configuration option Multi-language support is no)
  • PdfTemplate_YY.pdf, where YY is the shortcut of a chosen additional language, repeated for every chosen additional language (not shown when configuration option Multi-language support is no)
• Data for payment slip
  • CreditorInformation.json
  • AdditionalInformation.json (optional input file)
• Data for e-mail
  • MailData.json
  • MailBody.html (XX), where XX is the shortcut of the chosen default language ((XX) is not shown when configuration option Multi-language support is no)
  • MailBody_YY.html, where YY is the shortcut of a chosen additional language, repeated for every chosen additional language (not shown when configuration option Multi-language support is no)

Refer to the documentation of the input files for more details regarding structure and contents of the input files.

After deleting input files, in case all went well, you will see a message like this:

Input files successfully deleted or no files to delete.

After a file upload, in case all went well, you will see a message like this:

The file has been successfully uploaded.

Or in case of an error, for example after uploading the input file MailData.json you may get:

**Additional language is missing in given texts** subject, de
FILE HAS NOT BEEN UPLOADED!

Remark: The text Additional language is missing in given texts surrounded by two asterisks (*) is printed in bold face.

This means that the input file does not contain a text for the field subject in the additional language German, but the configuration has Multi-language support set to yes and Additional language(s) contains German.

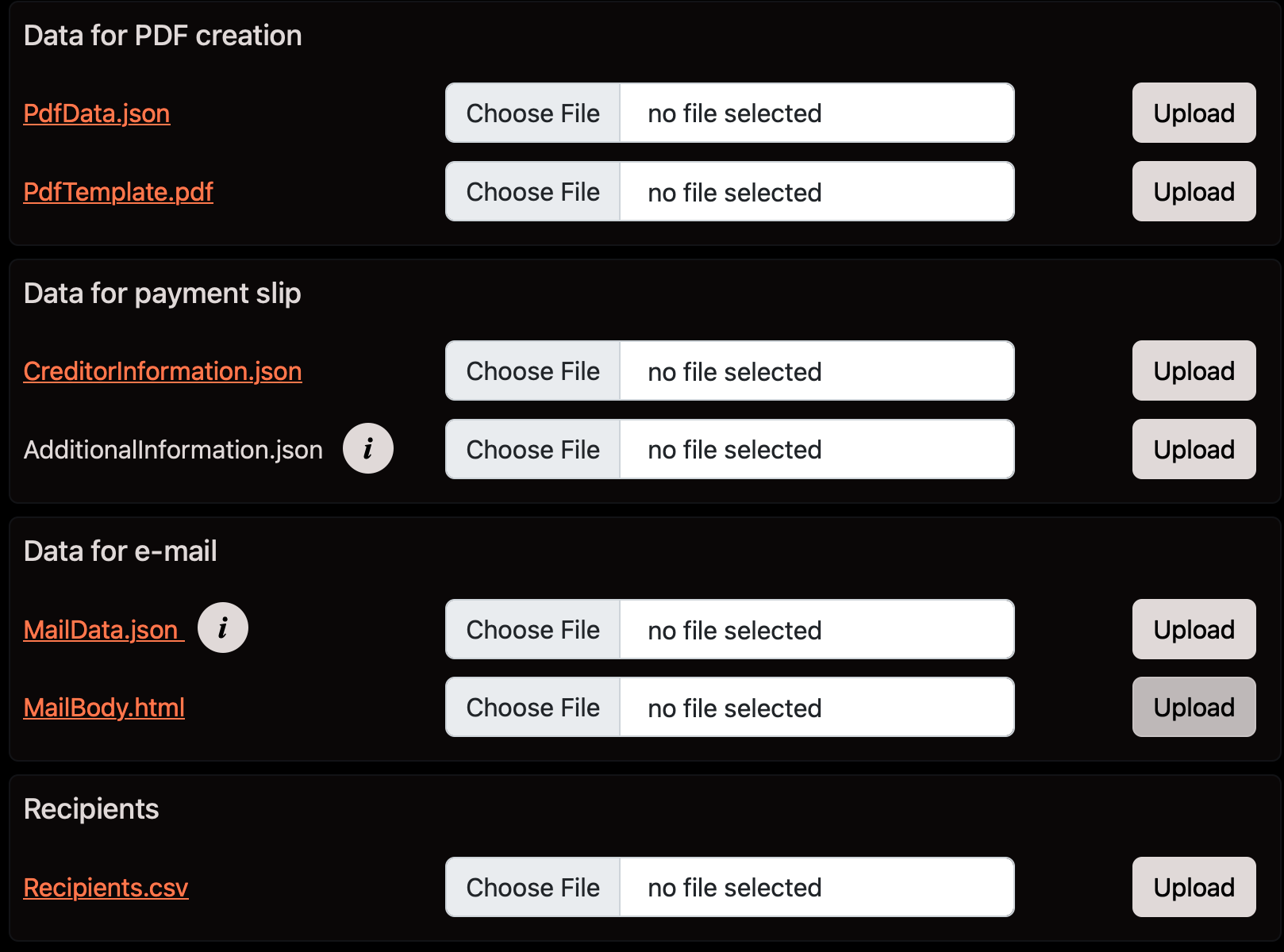

After you have succesfully uploaded all required input files (the optional input file AdditionalInformation.json was not uploaded in this case), the section will look somehow as follows:

The underlined name of a input file (like PdfData.json) indicates that the input file has been uploaded and provides a download link for the uploaded file. Clicking on such a link, downloads the input file to your client machine, which allows you to control the contents of the uploaded file.

3. Execute

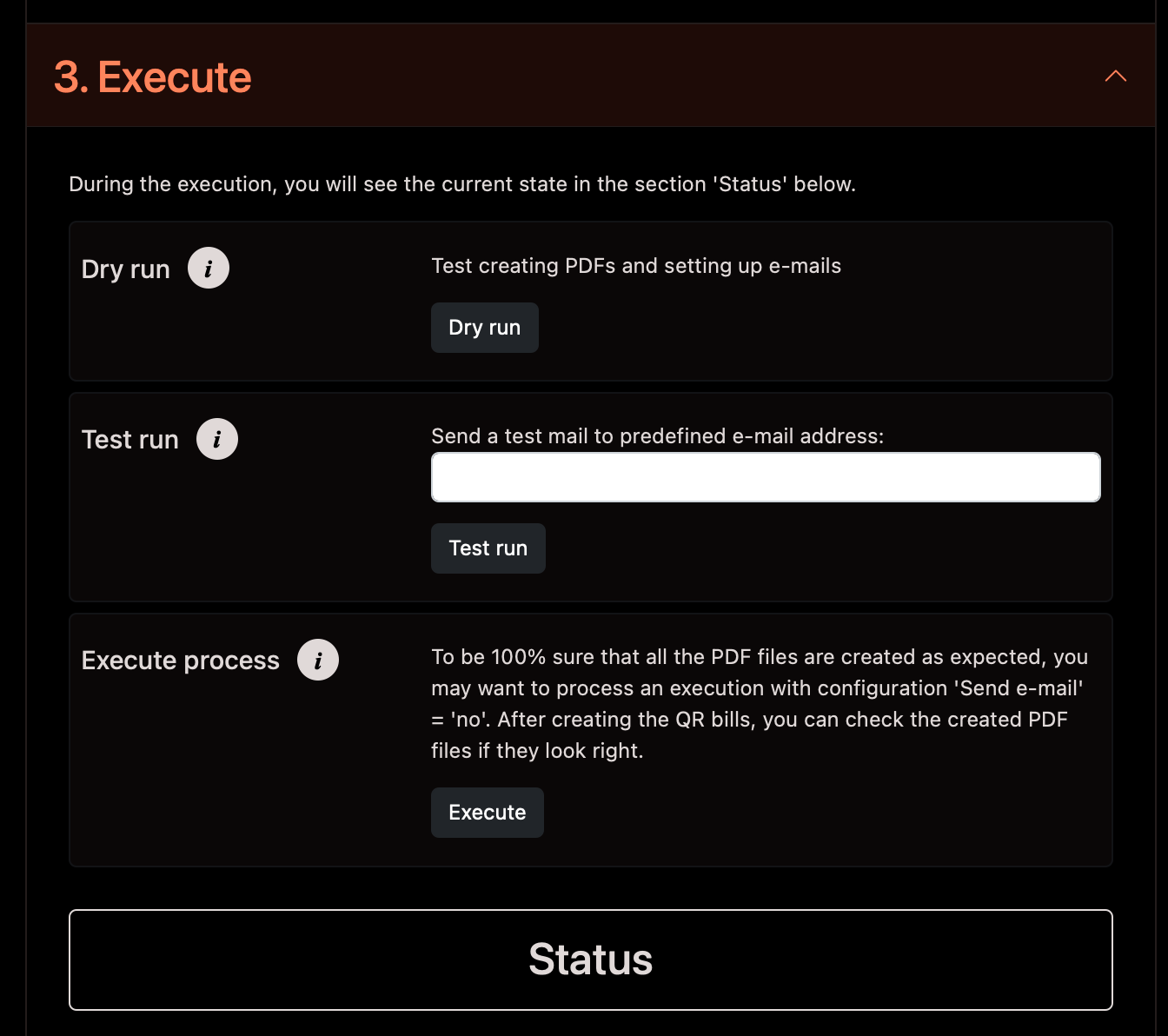

This section may look like this:

Dry run

A dry run will create all the PDFs in memory and setup the e-mail, so every possible action (including validation of the prepared data by 3rd party libraries) is done, but a dry run will not write the created PDFs into files on disk and will not send the prepared e-mails. A dry run of the QR bill processor is started by pressing the button Dry run.

The dry run will check whether all needed input files have been uploaded. If not, a warning like this is issued:

Missing input file for some language [SERVER_PATH]/[INSTALLATION_PATH]/data/[PROFILE_NAME]/input/MailBody.html, de,

whereby [SERVER_PATH] is the location of the file in the file system on your web server, [INSTALLATION_PATH] the path where you have installed QrBills and [PROFILE_NAME] the name of the current profile.
This message means that the file MailBody.html does not exist for the additional language German, so you forgot to upload the file for MailBody_de.html.

During a dry run, the input files are additionally checked whether they contain text in every language some recipient has. This warning has the following format:

Warning: Recipient '{index}' has language '{language}' and the following input data does not contain values for this language:
{file1}[: {key1}[ {key2} [.. {keyN}]]]; [{file2}[: {key1}[ {key2} [.. {keyN}]]]; [.. [fileN][: {key1}[ {key2} [.. {keyN}]]]]];

whereby:

In these cases just a warning is printed, but the DryRun is not stopped. (Processing will take the default language for these items with missing appropriate language.)

Example

Warning: Recipient '1' has language 'de' and the following input data does not contain values for this language:
MailData.json: subject attachmentName
MailBody_de.html

In this example, the fields subject and attachmentName in the file MailData.json miss a text for the language de (German) and (special case), the MailBody misses a localization for the language de (in this special case, the file MailBody_de.html is missing).

Test run

A test run starts the QR bill processing with a recipient list that has only one example entry (see RecipientsTestRun.csv). The example web pages requires to enter an e-mail address, which is preset with the configured e-mail address (field Test e-mail in section 1. Configuration). This e-mail address is dynamically inserted into the only entry of the special recipient list. Therefore, the QR bill processing will send only one mail to the entered e-mail address (hopefully yours). A test run of the QR bill processor is started by pressing the button Test run.

Attention: If you enter a formally valid, but non-existing e-mail address, the mail server cannot deliver the mail and sends an error report to the e-mail address defined by the field fromAddress in the input file MailData.json.

Processing

The QR bill processor is started by pressing the button Execute.

To ensure that no security mechanism will stop the processing, the QR bill processor will send only one mail per a configurable time (see sleepAfterSend in 1. Configuration). Therefore be patient if you have many recipients!

Status

The status field at the end of this section continuously shows the progress of the execution (the web page scrolls to this status field automatically).

Sucessful processing

[ {profile} ] Number of recipients to process: 1
#1.a) PDF for 'Sabatini Sandro' created.
#1.b) Mail has been sent successfully to: saba@saba.ch
[ {profile} ] CONGRATULATIONS: All recipients successfully processed!
Download  _protocol file_.
Download _ZIP archive_.

Remarks:

• The text {profile} contains the name of the current profile.
• The texts protocol file and ZIP archive surrounded by an underline (_) are printed underlined.

whereby:

• the number after the # sign is the index into the current Recipients.csv,
• the indicator a) stands for the PDF creation phase (the text shows the name of the recipient),
• and the indicator b) for the e-mail sending phase (the text shows the e-mail address of the recipient).

After the text "CONGRATULATIONS: All recepients successfully processed!", two download links are provided:

• The first link lets you download the protocol file.
• The second link lets you download a ZIP archive containing all the created PDF files and the protocol file.
  The second link is especially useful, if the PDF files weren't sent by e-mail, but you plan to print them on paper and send them per snail mail (or if you just want to archive the created PDF files including the protocol).

Error during processing

If some input is invalid (or something else unforeseen happens) then an error message is printed here and the processing stops.
Example:

**Invalid amount (< 0)** 1, Amount, -1
Download  _protocol file_.
Download _ZIP archive_.

Remarks: The text Invalid amount (< 0) surrounded by two asterisks (*) is printed in bold face. The texts protocol file and ZIP archive surrounded by an underline (_) are printed underlined.

The text in bold face (here Invalid amount (< 0)) hopefully explains the reason for the error.
The following items point to the location where the error has happened, here the index of the recipient (1), the name of the field (Amount) and the contents of the field (-1).

If the text in bold face reads UNEXPECTED ERROR: then you have been trapped by a software error (an unforeseen condition). In this case, the error has typically nothing to do with invalid data you have uploaded, but something in your installation is not compatible with the software.

As some errors may occur after some recipients have already received a mail (in case you send mails), you should remove the already processed entries from the input file recipients.csv (consult the protocol file to detect the already processed entries) and upload this changed file before you start another processing.

PDF without payment slip

1. Configuration

The options Print 'Ultimate Debtor' and Append reference to 'AdditionalInformation' are not shown as they are only useful when a payment slip is printed.

2. Upload input files

The possibilities to upload the input files that contain data for the payment slip (CreditorInformation.json and AdditionalInformation.json) are not shown.

3. Execute

Same possibilties as for use case QR bill PDF with payment slip.

HTML mail without PDF

1. Configuration

The options Currency, Print amount, Print 'Ultimate Debtor' and Append reference to 'AdditionalInformation' are not shown as they are only useful when a PDF with payment slip is created.

2. Upload input files

The possibilities to upload the input files that contain data for the PDF creation (PdfData.json, PdfPositions.json and PdfTemplate.pdf) or data for the payment slip (CreditorInformation.json and AdditionalInformation.json) are not shown.

3. Execute

Same possibilties as for use case QR bill PDF with payment slip.

Status

The status shows that no PDF files are created:

[ {profile} ] Number of recipients to process: 1
#1.a) Creating PDF suppressed by global flag 'createPdf'.
#1.b) Mail has been sent successfully to: saba@saba.ch
[ {profile} ] CONGRATULATIONS: All recipients successfully processed!
Download  _protocol file_.

Remarks:

• The text {profile} contains the name of the current profile.
• The text protocol file surrounded by an underline (_) is printed underlined.
